- General Information
- Manufacturer
- SonicWall Inc.
- Manufacturer Website Address
- http://www.sonicwall.com
- Brand Name
- SonicWall
- Marketing Information

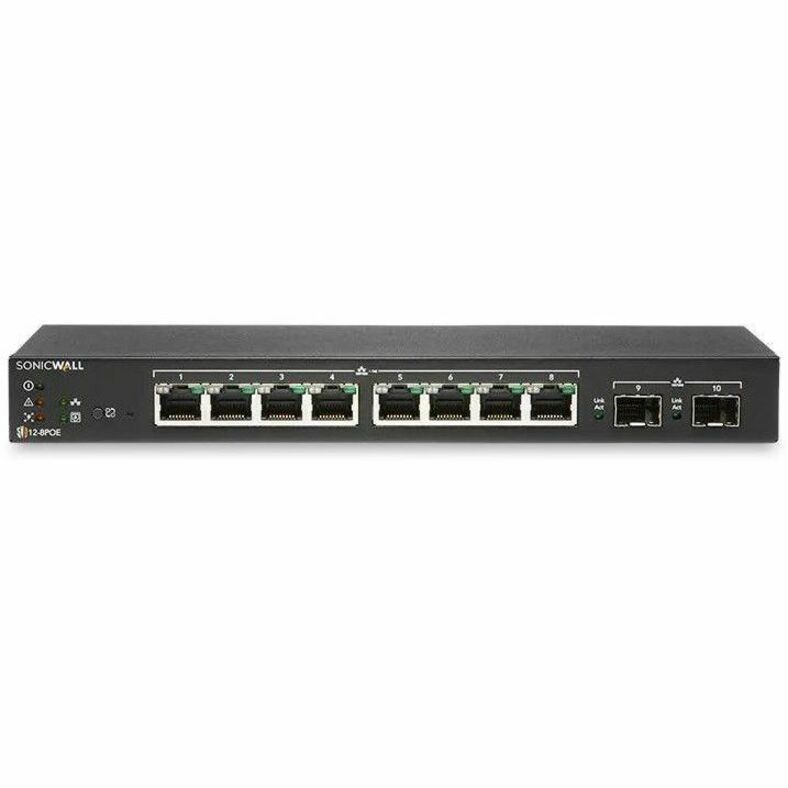

SonicWall Switch
High-speed Network Switching for Business Connectivity
The SonicWall Switch delivers high-speed network switching while providing unparalleled performance and manageability through SonicWall firewalls or Wireless Network Manager. It features a unified security posture, high port density, Power over Ethernet (PoE) options, and gigabit or 10 gigabit performance capabilities. New capabilities such as SNMP monitoring and backup and restore of Switch configurations make it ideal for small- and medium-sized businesses (SMB) and Software-Defined Branch (SD-Branch) deployments. This enables businesses - big or small - to accelerate digital transformation and keep pace with the changing network and security landscape.
- Product Type
- Ethernet Switch
- Technical Information
- Features
- Zero-Touch Provisioning (ZTP)
- Quality of Service (QoS)
- Energy Efficient
- Virtual LAN (VLAN)
- IGMP Snooping
- DHCP Snooping
- Access Control List
- Flow Control
- Interfaces/Ports
- Total Number of Network Ports
- 8
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x Gigabit Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate
- 128 MB/s
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.1x
- IEEE 802.1p
- Management & Protocols
- Manageable
- Yes
- Reliability
- MTBF
- 1387712 Hour
- Power Description
- Input Voltage
- 12 V DC
- Power Source
- Power Adapter
- Power Consumption
- 5.70 W
- Physical Characteristics
- Form Factor
- Desktop
- Compact
- Height
- 27 mm
- Width
- 240 mm
- Depth
- 105 mm
- Weight (Approximate)
- 620 g
- Miscellaneous
- Application/Usage
- Network
- Small Business
- Medium Business
- IP Camera
- VoIP Phone
- Wireless Access Point
- Camera
- Printer
- IoT Devices
- Additional Information
- Memory (MB): 256
- Flash (MB): 32
- Packet Buf.: 512K
- Mac Table: 8K
- Switching (Gbps): 20
- Power Supply: 24W Power Adapter
- Power Source: 12VDC Power Adapter
- Current: 2.0A
- Heat Dissipation (BTU): 19.4
- Min Power Cord Amperage: 10 Amp
- Operating Temperature: 0 - 40ºC
- Storage Temperature: -40 - 70ºC
- Humidity: 10-95% R.H
- MTBF @25ºC in Years: 158
- Switching Capacity (Duplex) in Gbps: 20
- VLANs: 4096
- Regulatory Model: APL51-0E1
